Industrial Flanges vs. Teflon Coating: Smart Choices for Piping Systems
Flange or Teflon Coating? A Practical Guide for Piping Systems
A simple comparison between industrial flanges and PTFE coatings to help you make smarter choices in different operating conditions
Industrial Flanges vs. Teflon Coating: Smart Choices for Piping Systems
In industrial piping systems, choosing the right components has a direct impact on safety, durability, and maintenance costs.
Two of the most important elements are:
-
🧰 Flanges, which connect pipes and equipment securely
-
🧪 Teflon (PTFE) coatings, which protect internal surfaces from corrosion and aggressive chemicals
In this article, we’ll compare these two solutions in simple terms so you can decide which one (or combination) works best for your project 👇
🧰 Industrial Flanges: The Backbone of Piping Connections
Flanges are circular metal components used to join pipes, valves, or equipment. Their main role is to create a strong, sealed, and detachable connection.
✳️ Advantages of Flanges
-
Easy disassembly for inspection and maintenance
-
High pressure and temperature resistance
-
Compatibility with global standards (ASME, DIN, ANSI)
-
Ideal for heavy-duty systems such as oil, gas, and steam pipelines
⚠️ Limitations of Flanges
-
If not properly selected or installed, they can leak
-
Prone to corrosion when exposed to harsh chemicals
-
Maintenance can be costly in aggressive environments
🧪 Teflon Coating: The Chemical Shield

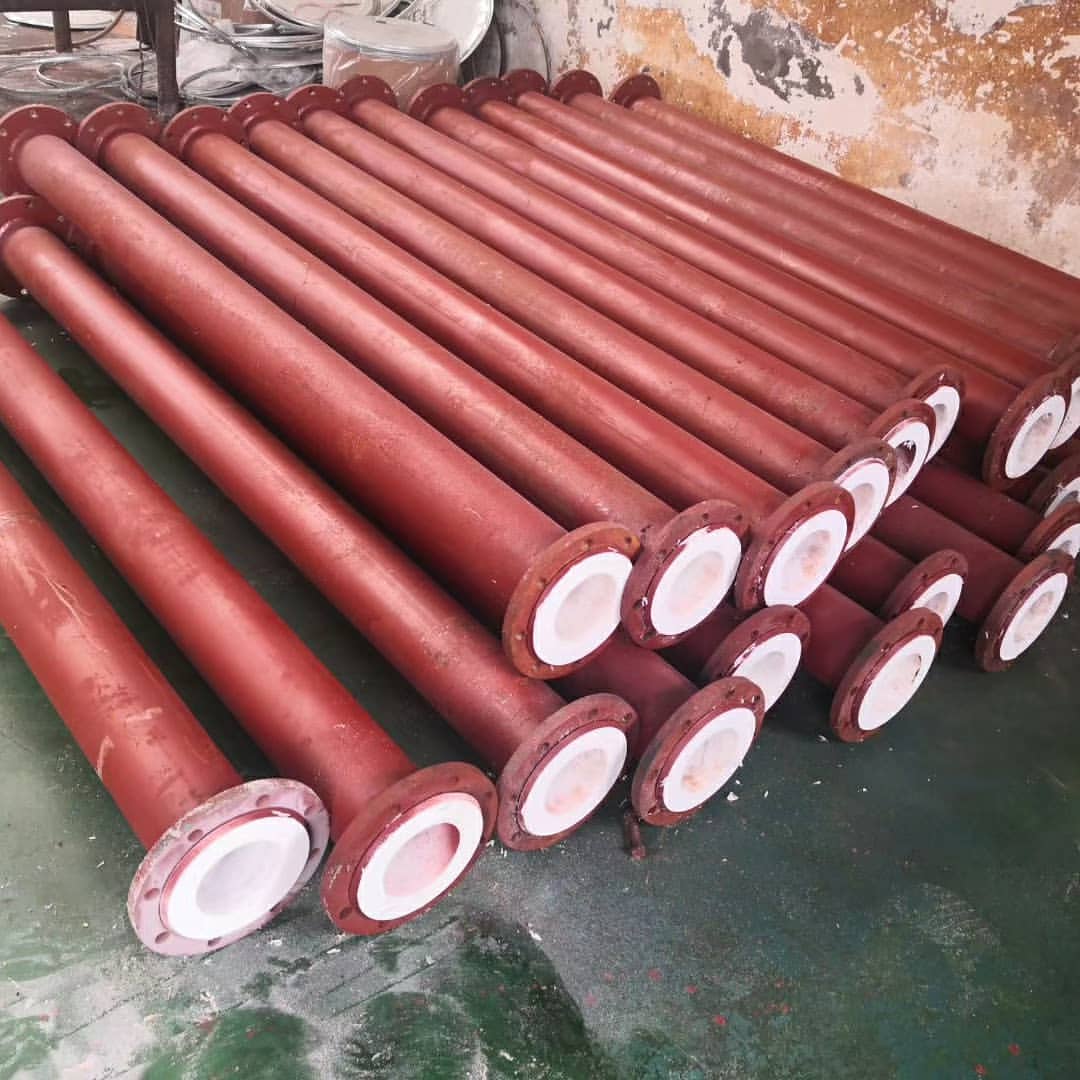

Teflon (PTFE) coatings form a protective layer on the inner surface of pipes and components.
Their main purpose is to prevent corrosion, reduce fouling, and increase the service life of equipment.
✳️ Advantages of Teflon Coating
-
Excellent resistance to chemicals, acids, and solvents
-
Non-stick surface minimizes residue build-up
-
High temperature tolerance
-
Extends equipment lifespan and lowers maintenance costs
⚠️ Limitations of Teflon Coating
-
Not suitable for extremely high-pressure applications (can get damaged)
-
Requires specialized application for proper performance
-
Sometimes needs to be combined with mechanical reinforcements like flanges
📊 Comparison Table
| Feature | 🧰 Industrial Flange | 🧪 Teflon (PTFE) Coating |
|---|---|---|
| Main function | Pipe and equipment connection | Corrosion protection & chemical resistance |
| Chemical resistance | Moderate to good (depends on material) | Excellent — resistant to most acids, bases, and solvents |
| Pressure resistance | Very high | Limited under extremely high pressures |
| Temperature resistance | High | High (up to ~260 °C) |
| Leakage control | Depends on gasket and proper installation | Provides a sealed protective layer inside pipes |
| Maintenance cost | Can be high in corrosive environments | Lower — non-stick surface is easier to clean and maintain |
| Typical industries | Oil, gas, petrochemical, steam | Chemical, food, pharmaceutical, oil & gas |
🧭 When to Use Flanges vs. Teflon Coating
Choosing between flanges and Teflon coating depends on your operating conditions:
✅ Use flanges only when:
-
Pressure and temperature are very high
-
The system requires frequent disassembly
-
The fluid is not highly corrosive
✅ Use Teflon coating only when:
-
The fluid is chemically aggressive (e.g., acids, bases)
-
Pressure and temperature are moderate
-
The main goal is surface protection and anti-fouling
✅ Use both together when:
-
You face both high pressure/temperature and corrosive fluids
-
You want to maximize system lifespan and reduce maintenance
-
You work in critical industries like oil, gas, chemical, or petrochemical
📝 Conclusion
Flanges and Teflon coatings serve different but complementary purposes.
-
Flanges ensure strong mechanical connections and pressure handling.
-
PTFE coatings protect against corrosion and improve operational efficiency.
👉 The best approach in many industrial projects is to combine both — use flanges for strength and coatings for protection.
This combination gives you a reliable, long-lasting piping system with reduced downtime and lower maintenance costs
